Z-Axis, Inc. Part V159AM054 CRT REPLACEMENT

The QES1507-001 is a drop-in replacement LCD for the Z-Axis V159AM054, 5” X 9” Amber CRT Monitor used in INFICON IC/5 Deposition Controllers.

At Dynamic Displays we are dedicated to speed & honesty with our EZ-Quote system.


Z-axis V159AM054, 5” X 9” Amber CRT Monitor

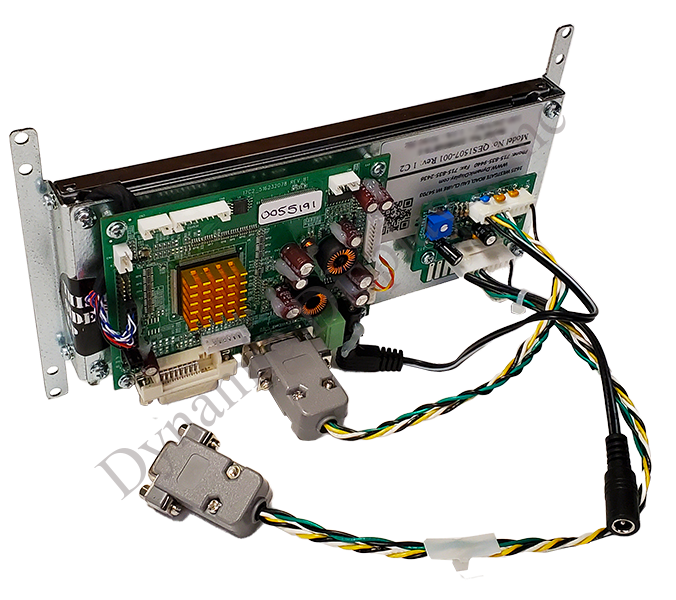

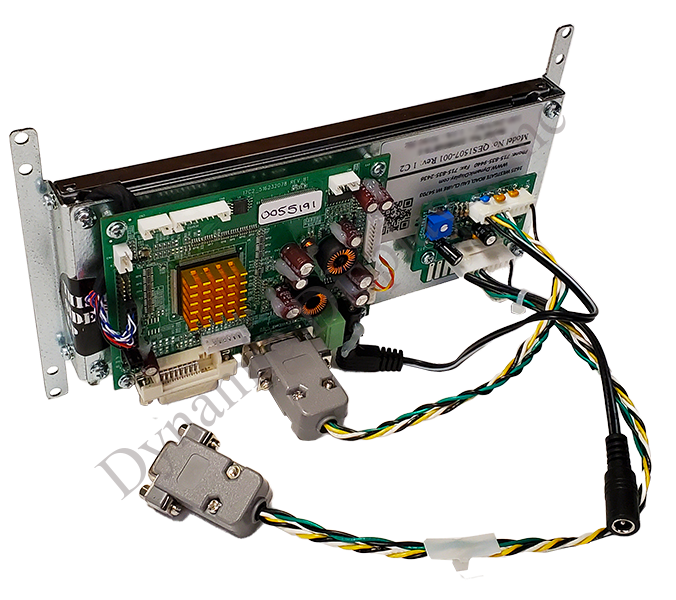

The QES1507-001 is a drop-in replacement LCD for the Z-Axis V159AM054, 5” X 9” Amber CRT Monitor used in INFICON IC/5 Deposition Controllers. The QES1507-001 is a drop-in replacement LCD for the Z-Axis V159AM054 5” X 9” Amber CRT Monitor used in INFICON IC/5 Deposition Controllers. The open frame chassis of this rugged, high-performance, the 7.8-inch color TFT LCD monitor is designed to bolt onto the CRT mounting holes on the chassis of the original Z-axis V159AM054 CRT monitor, making it unnecessary to replace or make expensive modifications to the original Z-Axis CRT monitor chassis. The QES1507-001 monochrome LCD monitor features dual input options, with a 10-Pin Edge Card connection and a 9-Pin D-Sub Female Connector input video connections for easy interface, making this rugged, industrial-grade 5” X 9” LCD a plug-and-play solution for your Z-Axis V159AM054 CRT Monitor replacement needs. CRT monitors can be unreliable and in the event of failure, your Deposition Controller can be down for days at a time when you need it the most—if and when this happens, installing an LCD upgrade is the fastest and most reliable way to get your machine controller up and running. If you are uncomfortable with the prospect of upgrading your Z-Axis V159AM054 Monitor yourself, Dynamic Displays can perform the retrofit at no cost to you.  Just give us a call at 715-835-9440 or email us at sales@dynamicdisplay.com.

Z-axis V159AM054 LCD Replacement Features:

  • Replacement for Z-Axis V159AM054 Monitor.
  • Mounts into the original mounting holes of INFICON IC/5 Deposition Controller
  • Input Format: EGA Timing: 21.8KHz at 60Hz - 640 x 350
  • Input Video: TTL Monochrome with Separate Sync. (Setup for White Video)
  • Operating Voltage: 12 VDC
  • Interface Signal Connectors: Dual Input Options,
    • 10 Pin Edge Card
    • 9 Pin D-Sub Female Connector
  • Rugged Cold Roll Steel Open-Frame Chassis
  • 7.8-Inch Color SVGA TFT LCD with reliable LED Backlight
  • LCD Display Area: 7.67” (H) x 2.75” (V), 7.8-Inch Diagonal
  • High Brightness – 500 Cd/M2 Typical
  • High Contrast – 1000:1 Typical
  • Replaces Teletube Electronics Limited CRT P/N: S5901P830A1L68

Equivalent Models: V159AM054

Follow this link to see a searchable list of Industrial Replacement Monitors

QES1507-001 Series Features

  • Replaces Z-axis V159AM054, 5” X 9” Amber CRT Monitor
  • Mounts into the original mounting holes of INFICON IC/5 Deposition Controller
  • Input Format: EGA Timing: 21.8KHz at 60Hz - 640 x 350
  • Input Signal Connectors: Dual Input Options, 10 Pin Edge Card or 9 Pin D-Sub Female Connector
