17″ MRD1817C-WM Wall-Mount Series, Rugged LCD COTS LCD Displays

Our 17” COTS Wall-Mount Rugged LCD Display (MRD-Series) was designed with shock and vibration safeguards provisions for extreme environments and designed to meet a wide variety of applications such as Shipboard, Airborne and Ground Mobile for use in extremely harsh conditions found in many rough COTS Military LCD Display Applications.

GET EZ QUOTE

At Dynamic Displays we are dedicated to speed & honesty with our EZ-Quote system.

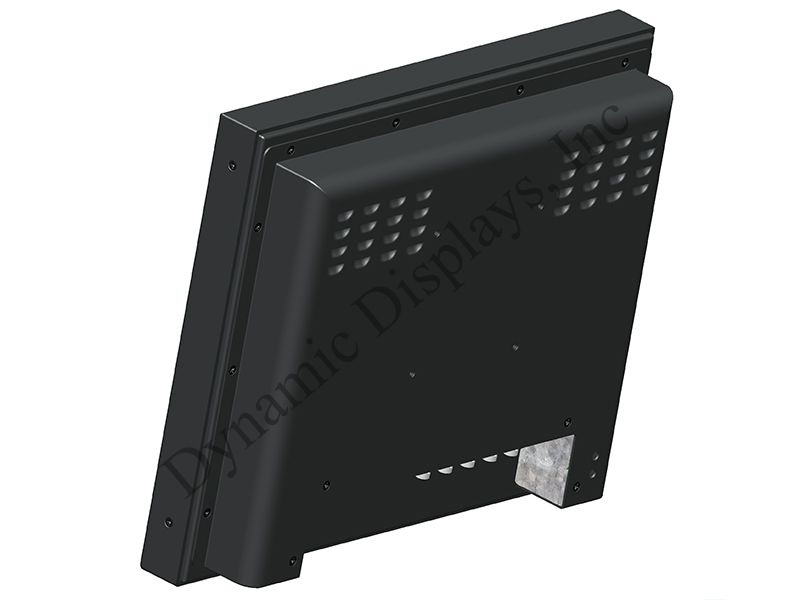

Our 17” COTS Wall-Mount Rugged LCD Display (MRD-Series) was designed with shock and vibration safeguards provisions for extreme environments and designed to meet a wide variety of applications such as Shipboard, Airborne and Ground Mobile for use in extremely harsh conditions found in many rough COTS Military LCD Display Applications. This unit is capable of operating with legacy timing such as RS-170 (525 Line) and RS-343 (875-Line) Interlace formats.  Also, NTSC/PAL Video (RCA Jack), S-Video (5 Pin Mini-Din), and VGA (HD15-DSub) Standard VESA Input Timings.  With the availability of selecting aspect ratios of 1:1 or 4:3 on all video inputs through the use of the On-Screen Display (OSD) Menu. The MRD1817C-WM COTS Wall Mount Series is a 17” cost-effective LCD Display, packaged in a heavy-duty cold roll steel enclosure with the heavy-duty aluminum front bezel, internal rugged construction, and bonded Anti-Reflective protective faceplate glass for superior optical performance and better protection in extreme environments.  These features make this 17” COTS Wall Mount Rugged LCD Display unit great for use in demanding applications that require graphics, video, and other RGB data on a single, rugged display. Target application platforms for the MRD1817C-WM COTS Wall Mount Rugged LCD Military Display Monitors include Surface Ships Displays, Air Traffic Control, Military Navigation Display Monitor, and Commercial-off-the-shelf (COTS) Military Displays Applications.
Each MRD1817-series 17" Wall Mount LCD display is capable of operating with legacy timing such as RS-170 (525 Line) and RS-343 (875-Line) Interlace formats - Interface Panel.

Each MRD1817C-WM-series 17" Wall Mount LCD display is capable of operating with legacy timing such as RS-170 (525 Line) and RS-343 (875-Line) Interlace formats - Interface Panel.

Brochure
2D Drawing
3D Drawing
Contact Us

MRD1817C-WM Series Features

  • 17.0 In SXGA TFT LCD Display with Solid State LED Backlight.
  • 1280 x 1024 Native Resolution.
  • High Contrast: 1000:1 Typical.
  • High Bright TFT Display: 1200 Nits.
  • Wide Viewing Angle: 85R/85L – 80U/80L.
  • Bonded Anti-Glare Protective Faceplate Glass for Superior Optical Performance and Enhance Protection on Extreme Environments.
  • Standard VESA VGA + DVI Input Timings.
  • Analog RGB Sync On Green (SOG), Composite Sync or Separate Sync Inputs (5 BNC).
  • RS-170 (525 Line) & RS-343 (875-Line) Interlace Formats.
  • NTSC/PAL Composite Video (RCA Jack) and S-Video (4 Pin Mini-Din).
  • 90-264VAC Auto Ranging Internal AC Power Supply.
  • Aspect Ratio: 1:1 or 4:3 (OSD Selection).
  • Front Manual Full Range Brightness and Contrast Control (Dimming).
  • Picture-In-Picture (PIP).
  • Picture-Outside-Picture (POP).
  • Extended Operating Temperature Rating: -30°C to +85°C.
  • Convenient Front Controls.
  • Internal Ruggedized Construction.
  • Conformal Coating of Internal Assemblies for Enhanced Ruggedness.
  • Heavy Duty Aluminum Front Bezel.
  • VESA 75/100 Standard Mounting.

Other Options Include

  • Custom Designs Available; Including Spec, Color, Finish and Format.
  • NVIS Class A & B.
  • TTL Video Input for EGA, CGA and MDA Timings.
  • 12VDC, 24VDC, 28VDC, and 48VDCInput Voltage.
  • 3 Buffered Unity-Gain BNC Outputs (RGB).
  • Differential Video Input for Enhanced Noise Immunity.
  • 91 Ohm Video Termination.
  • Touch Screen: Resistive, Capacitive, and SAW.
  • Wireless Remote Control.
