Kristel 75DD-CB2 CRT REPLACEMENT
The QES1507-002 is a drop-in replacement LCD for the Kristel 75DD-CB2 7” Monochrome CRT Monitor used in Filtec FT-100/3/CI Level Inspector.
Kristel 75DD-CB2 7” Monochrome CRT Monitor
The QES1507-002 is a drop-in replacement LCD for the Kristel 75DD-CB2 CRT Monitor used in Filtec FT-100/3/CI Level Inspector. Are you prepared for the time when the aging and increasingly unreliable 7-inch Kristel 75DD-CB2 or Data Ray DR1007 monitor in your Filtec FT-100/3/CI Level Inspector finally fails for good? No need to worry, Dynamic Displays has you covered. The modern QES1507-002 6.5″ monochrome TFT LCD replaces the original 7″ monochrome CRT monitors used in the Filtec FT-100/3/CI Level Inspector controllers. This rugged, high-performance LCD is fully compatible, both mechanically and electrically with your Kristel 75DD-CB2 or Data Ray DR1007 CRT monitor, making it simple to make the upgrade yourself. If you are uncomfortable at the prospect of upgrading the CRT in your Filtec FT-100/3/CI Level Inspectors yourself, Dynamic Displays can perform the retrofit at no cost to you. Just give us a call at 715-835-9440 or email us at sales@dynamicdisplay.com. When the monochrome 7-inch CRT in your CNC equipment burns out, installing a Dynamic Displays 6.5” LCD upgrade is the fastest and most reliable way to get your machine controller up and running. You might consider upgrading even earlier. CRT are aging and are increasingly unreliable and your CNC machine tool can be down for days at a time when you need it the most. Replacing your old, failing CRT earlier, at a time of your choosing, can often be a good option for minimizing downtime.Kristel 75DD-CB2 LCD Replacement Features:
- Replacement for Kristel 75DD-CB2 Monitor.
- Mounts into the original mounting holes of Filtec FT-100/3/CI Level Inspector
- Drop directly into the mounting holes of Filtec P/N: 24231 - 7” CRT Monitor
- Input Video: TTL Monochrome with Separate Sync
- Operating Voltage: 12 VDC

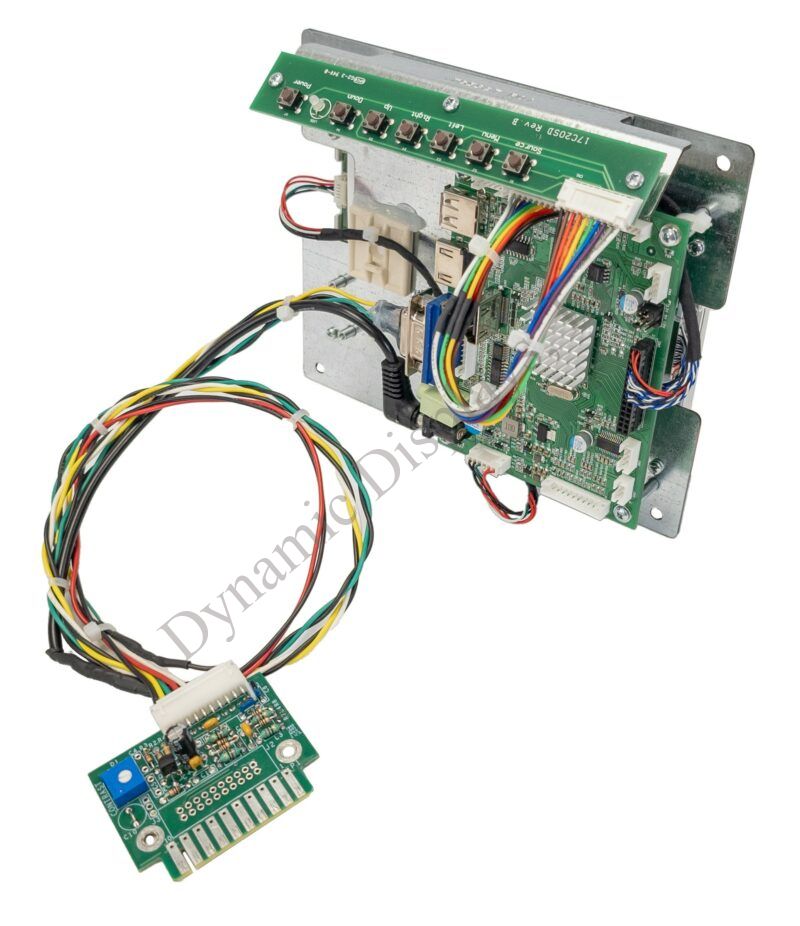

- Interface Signal Connectors: 10-Pin Edge Card
- 6.5-inch Color LCD with reliable LED Backlight
- High Brightness – 800 Cd/M2 Typical
- High Contrast – 1000:1 Typical
- Rugged Cold Roll Steel Open-Frame Chassis
- Extended Operating/Storage Temperature: -30° to +80°C
Our QES1507-002 Replaces the following Monitors:
- Dynamic Displays, Inc. P/N: QES907-002
- Industrial Dynamics (Formerly Filtec) P/N: 24231
- Kristel P/N: 75DD-CB2
- Data Ray DR1007, P/N 800405
- Display Technologies MD1500-390A
- Motorola MD1500-390A
Industrial Dynamics - Filtec PN 24231. Chassis Provided by Customer. Kristel 75DD-CB2 or Data Ray DR1007 monitor.
