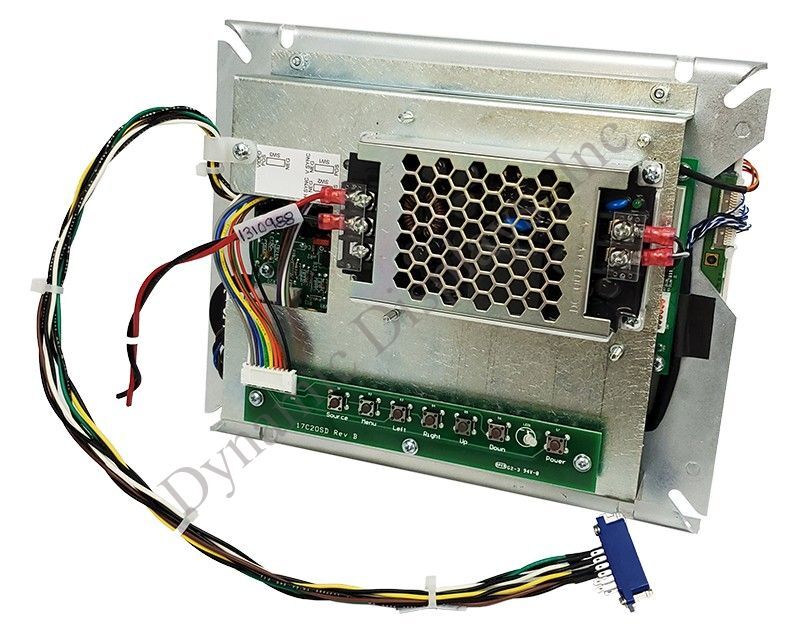

A61L-0001-0086 (Matsushita TR-9DKYC), 9 In Monochrome CRT monitor replacement - Rear View.
Fanuc Input Connector Honda MR-20M used: A61L-0001-0095, A61L-0001-0093, A61L-0001-0092, A61L-0001-0090, A61L-0001-0071, A61L-0001-0072, A61L-0001-0076, A61L-0001-0086, A13B-0166-C001

A61L-0001-0086 Fanuc Monitor,
CRT monitor replacement

Model QES1508-078 8.4 In LCD replaces Fanuc Model A61L-0001-0086 (or Matsushita TR-9DKYC) with 9-36 Input, 9 In Monochrome CRT Monitors used in Fanuc 10, 10T, 11, and 11M Series Control Panels.

GET EZ QUOTE

At Dynamic Displays we are dedicated to speed & honesty with our EZ-Quote system.

A61L-0001-0086 Fanuc Monitor, 9 in Monochrome CRT monitor replacement

If the A61L-0001-0086 Fanuc Monitor, 9 In CRT Monochrome CRT monitor in your Fanuc CNC Machine control has failed and you need to quickly find a drop-in replacement monitor, look no further.  Our model QES1508-078 is a high-performance, 8.4 In LCD monitor whose rugged, open frame steel chassis was designed to drop right into the mounting holes of the original Fanuc 9 In monochrome CRT.  Making it unnecessary to replace or make expensive modifications to the original Fanuc CRT monitor chassis. This LCD upgrade accepts the TTL video signals used in Fanuc 10, 10T, 11, and 11M Series CNC Machine control for the original A61L-0001-0086 Fanuc monitor with no need for signal adapters of any sort.  This unit has been optimized to operate at the 20.3KHz/55.25Hz Fanuc monitor timing. Featuring a 600:1 contrast ratio and 450 Cd/M2 brightness, this rugged QES1508-078 monochrome LCD TFT display is an excellent replacement monitor for your legacy Fanuc A61L-0001-0086 Fanuc Monochrome CRT display monitor. If you are uncomfortable with the prospect of upgrading your A61L-0001-0086, Fanuc Monitor yourself, Dynamic Displays can perform the retrofit at no cost to you. Just give us a call at 715-835-9440 or email us at sales@dynamicdisplay.com.

OUR MODEL QES1508-078 ALSO REPLACES THE MATSUSHITA TR-9DKYC.

A61L-0001-0086 Fanuc Monitor CRT Display Replacement Features:

  • A61L-0001-0086 CRT Replacement Monitor
  • Mounts into the original mounting holes of Fanuc A61L-0001-0086
  • Input Video: TTL Monochrome with Separate Sync.
  • Interface Signal Connectors: Honda #MR-20M
  • Operating Voltage: 9-36 VDC
  • Rugged Cold Roll Steel Open-Frame Chassis
  • 8.4-Inch SVGA TFT LCD with reliable LED Backlight
  • LCD Display Area: 6.7” (H) x 5” (V), 8.4-Inch Diagonal
  • High Brightness – 450 Cd/M2 Typical
  • High Contrast – 600:1 Typical
A61L-0001-0086 or Matsushita TR-9DKYC CRT Monitor Replacement

A61L-0001-0086 or Matsushita TR-9DKYC CRT Monitor Replacement

Equivalent Models: A61L-0001-0086, A61L00010086, TR-9DKYC, TR9DKYC

Follow this link to see a searchable list of Industrial Replacement Monitors

Contact Us

QES1508-078 Series Features

  • Replaces Fanuc A61L-0001-0086 9-Inch CRT monitor.
  • Replaces Matsushita Electric TR-9DKYC 9-inch CRT monitor.
  • 8.4 inch SVGA TFT LCD with LED Backlight
  • Designed For Fanuc 10, 10T, 11 and 11M Series Control Panels
  • Rugged Cold Roll Steel Open-Frame Chassis drops directly into 9" monochrome CRT mounting holes
  • Operating Voltage: 9-36 VDC
  • Hirose (Honda) 20 Pin input video connector
