Fanuc A02B-0120-C092/MA LCD Replacement

Model QES1510-052 10.4 In LCD replaces Fanuc A02B-0120-C092/MA, 10.4 In Color LCD Displays used in Fanuc Robo II MDI Control.

At Dynamic Displays we are dedicated to speed & honesty with our EZ-Quote system.

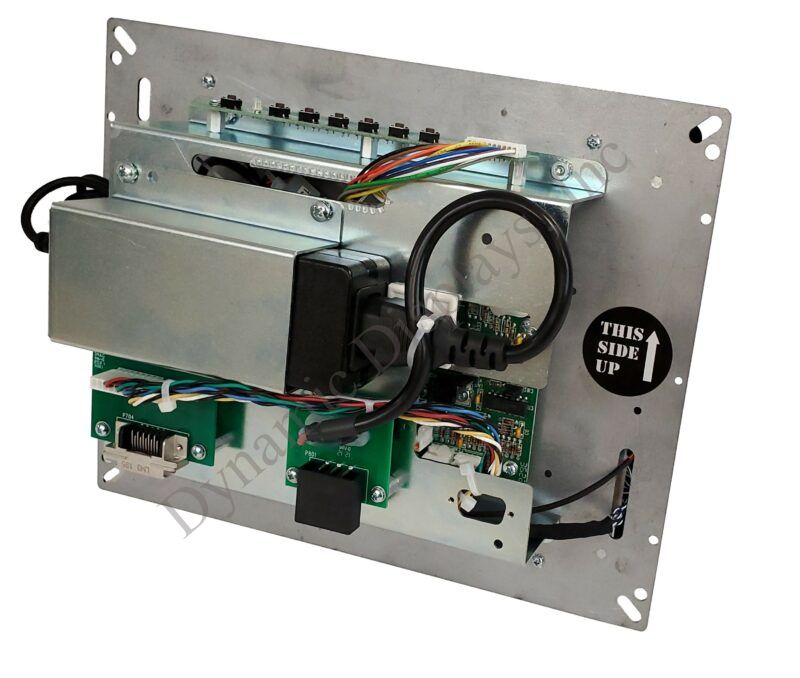

GE Fanuc A02B-0120-C092/MA LCD Replacement
If you’re having trouble finding an affordable replacement monitor for your failed 10-inch Fanuc A02B-0120-C092/MA LCD display, Dynamic Displays has a replacement solution for you. Our QES1510-052 10.4-inch LCD display is a direct replacement for every model of 10.4" Fanuc LCD Monitor used in the legacy Fanuc Series Controls. The QES1510-052 10.4-inch LCD Display mounts in the same mounting holes and has the same video and power connections as the 10.4” Color Fanuc A02B-0120-C092/MA Monitor Replacement. Fanuc A02B-0120-C092/MA LCD Replacement Features:
  • Upgrade drops directly into the mounting holes of the Fanuc Chassis
  • Input Connector: Hirose 20-Pin Connector
  • Input Voltage: 110/220 VAC
  • 10.4” LCD
  • Input Video: TTL Monochrome with Separate Sync
  • High Brightness – 300 Cd/M2 Typical
  • High Contrast – 500:1 Typical
  • Rugged Cold Roll Steel Open-Frame Chassis
If you are uncomfortable with the prospect of upgrading your Fanuc A02B-0120-C092/MA monitor yourself, Dynamic Displays can perform the retrofit at no cost to you. Just give us a call at 715-835-9440 or email us at sales@dynamicdisplay.com. DYNAMIC DISPLAYS ADVANTAGE
  • Made in the USA: Our products are designed and manufactured in Eau Claire, WI, USA.
  • Our products include a 2-year warranty.
  • 100% satisfaction guaranteed.
  • Proud and proven: We have been in business since 1991 as an industrial manufacturer with a proven, tangible track record.
  • Human interface: Our bilingual (English/Spanish) technical support staff is highly responsive and based in the United States.
FANUC A02B-0120-C092/MA 10.4 IN COLOR LCD DISPLAY REPLACEMENT - CHASSIS PROVIDED BY CUSTOMER.

FANUC A02B-0120-C092/MA 10.4 IN COLOR LCD DISPLAY REPLACEMENT - CHASSIS PROVIDED BY CUSTOMER.

  Equivalent Models: Fanuc A02B-0120-C092/MA, Fanuc A02B0120C092MA, Fanuc A02B-0120-C092

FOLLOW THIS LINK TO SEE A SEARCHABLE LIST OF INDUSTRIAL REPLACEMENT MONITORS

QES1510-052 Series Features

  • Fanuc A02B-0120-C092/MA 12” CRT Monitor Replacement
  • Honda MR-20M+ 20 Pin Input Video Connector
  • RGB TTL video Input meets Fanuc Series Control Timing Standards
