Matsushita TX-1424,
14 In RGB Color CRT Monitor Replacement

Model QES1514-055 14.1 In LCD replaces Matsushita TX-1424, 14 In Color CRT Monitors used in Fanuc 10 and 11 Series.

At Dynamic Displays we are dedicated to speed & honesty with our EZ-Quote system.


Matsushita TX-1424 - 14" Color CRT Monitors  - Fanuc 10 and 11 Series

When you need a replacement monitor for your Fanuc CNC 14” CRT Monitor, why not consider installing a modern, high-quality 14” LCD display instead?

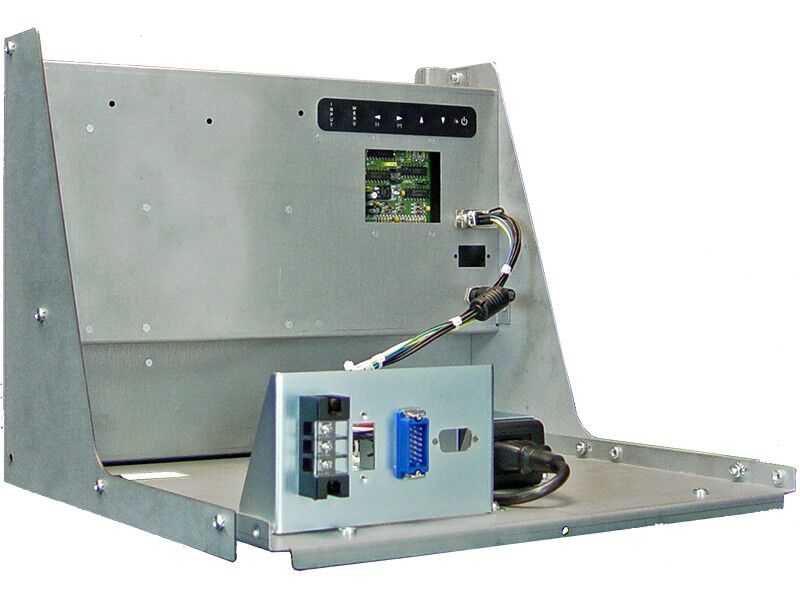

We’ve made it easy for you by designing the rugged, open-frame chassis of the new QES1514-055 LCD display so it can drop into the mounting holes of the original A61L-0001-0074 Fanuc monitor and A61L-0001-0094 Fanuc monitor used in the Fanuc Controls 6, 10, 11, 12 and 15 systems, making it unnecessary to replace your original Fanuc CNC 14” CRT Monitor chassis. What’s more, the video input circuitry of the QES1514-055 accepts the TTL video signals from the original FANUC system with no need for signal adapters of any sort.

This makes the QES1514-055 14 inch Fanuc monitor retrofit LCD display an ideal Fanuc Replacement Monitor for all A61L-0001-0074 Fanuc monitor and A61L-0001-0094 Fanuc monitor models, including the DNC 74 Monitor series; the Matsushita TX1404, TX1404AB, TX1424, TX1424AB and TX1450AB monitors; and the Hitachi C14C-1472DF, C14C-1472D1F and TX-1424AD monitors; and Toshiba D14CM-06A.

Additionally, while this QES1514-055 14 inch LCD display has been optimized to operate at the 20.3KHz/55.25Hz FANUC control console timing, it also operates with a variety of other TTL legacy monitor timings, making it a drop-in replacement LCD monitor for other CRT monitor brands, such as Tatung, Matsushita, Hitachi, and Toshiba.

Model QES1514-055 14.1 In LCD replaces Matsushita TX-1424, 14 In Color CRT Monitors used in Fanuc 10 and 11 Series - Installed

Model QES1514-055 14.1 In LCD replaces Matsushita TX-1424, 14 In Color CRT Monitors used in Fanuc 10 and 11 Series - Installed

QES1514-055 Series Features

  • Fanuc A61L-0001-0074 14" CRT monitor Replacement LCD
  • A61L-0001-0094 14" Fanuc CRT monitor Replacement LCD
  • Matsushita TX-1404 14" CRT monitor Replacement LCD
  • Matsushita TX-1404AB 14" CRT monitor Replacement LCD
  • Matsushita TX-1424 14" CRT monitor Replacement LCD
  • Matsushita TX-1424AB 14" CRT monitor Replacement LCD
  • Hitachi C14C-1472DF14" CRT monitor Replacement LCD
  • Hitachi C14C-14D1F 14" CRT monitor Replacement LCD
  • Hitachi TX-1424AD 14" CRT monitor Replacement LCD
  • Toshiba D14CM-06A 14" CRT monitor Replacement LCD
  • 14.1” XGA Color TFT-LCD Display
  • High Contrast – 500:1 Typical
  • High Brightness - 250 Cd/m2
  • Hirose (Honda) 20 Pin input connector
  • TTL Input meets Fanuc Controls 6, 10, 11, 12 and 15 systems timing standards
  • Heavy Duty Cold Roll Steel Chassis drops directly into Fanuc Control Console 14 inch CRT mounting holes
  • 10.90" (H) x 13.37” (W) x 12.76”(D) Frame Outline

Other Options Include

  • Anti-Reflective Protective Faceplate
  • Strengthened Glass Protection
  • Wireless Remote Control
