Allen Bradley 8520-COP – PN 148327,
12 In Color CRT Monitor Replacement

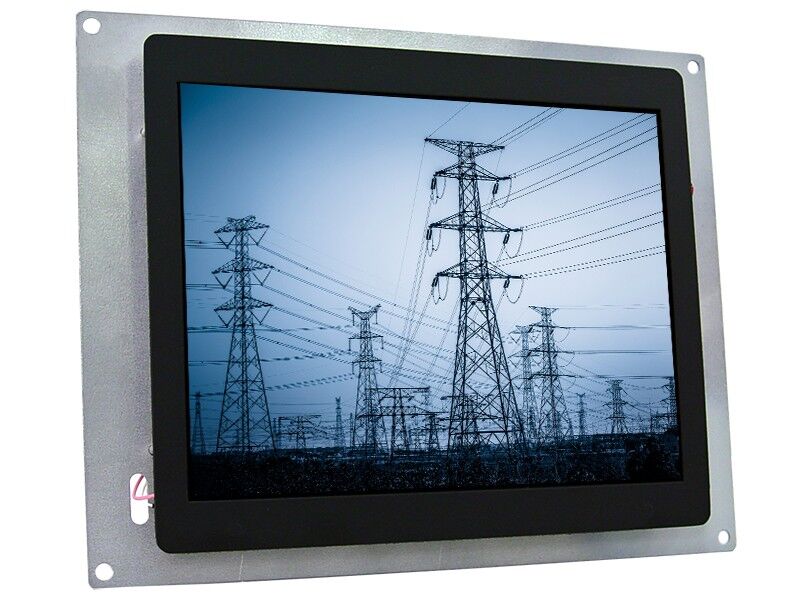

QES1510-020 10.4 In LCD replaces Allen Bradley 8520-COP – PN 148327, 12 In Color CRT Monitors used in Allen Bradley 9/240 Series Processor Module.

At Dynamic Displays we are dedicated to speed & honesty with our EZ-Quote system.


Are you finding it hard to find an affordable replacement display for your failed Allen Bradley CRT monitor? Dynamic Display’s QES1510-020 10.4 inch LCD Allen Bradley retrofit monitor designed to be a drop-in replacement display for Allen Bradley 8520-COP (PN 148327) and Allen Bradley 8520-COP3 Monitor used in the Allen Bradley 9/230 Series & 9/240 Series CNC Machine systems.

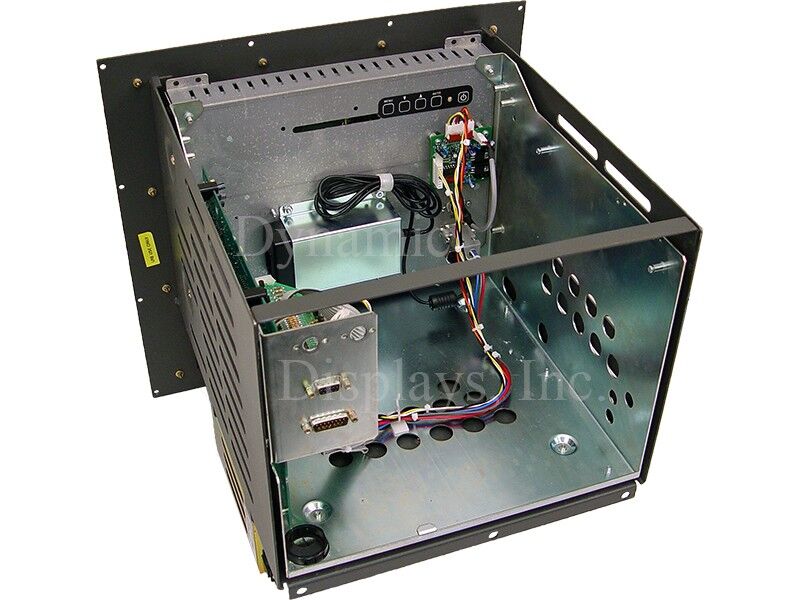

The ruggedly-built, heavy-duty steel chassis of the QES1510-020 10.4 ” Fanuc replacement LCD monitor is designed to mount directly unto the original CRT mounting holes of the 12” Color CRT Monitor (Catalog # 8520-COP) used in Allen Bradley 9/230 Series & 9/240 Series CNC Machine systems, making it unnecessary to replace the original chassis. The video input of the QES1510-020 Allen Bradley retrofit monitor is fully compatible with the Differential TTL video signals from the original Allen Bradley 9 Series CNC Machine system with no need for signal adapters of any sort.

The QES1510-020 Allen Bradley Retrofit Monitor has been optimized to operate on the Allen Bradley 9/230 Series & 9/240 Series control systems, but is compatible with other legacy systems as well. These Retrofit Allen Bradley Monitors are more reliable, last longer, and perform better than the older 12” Color CRT Monitor, making this versatile LCD monitor an excellent choice for your Allen Bradley industrial Monitor Replacement.

Equivalent Model Numbers: 8520-CRTC1, 8520CRTC1, PN 160743, 8520-COP, 8520COP, PN 148327, 8520COP3, 8520-COP3, 8520-OPC, 8520OPC, PN 160744, 8520-OPS1, 8520OPS1, 8520-VCRT1, 8520VCRT1, 8520-VOP1, 8520VOP1

QES1510-020 Series Features

  • Designed For Allen Bradley 8520-COP - PN 148327 Control Panel
  • Designed For Allen Bradley 8520-COP3 Control Panel
  • Rugged steel chassis drops directly into the mounting holes of the 12” color CRT
  • 10.4 inch SVGA Color TFT LCD with reliable solid state LED Backlight
  • TTL video Input - Allen Bradley 9/230 & 9/240 Series Timing
  • High Contrast – 500:1 Typical
  • Universal Power Supply with VESA Power Management
  • Power Requirements: 100-240 VAC 50-60 Hz @ 1 Amp
  • Dimensions: 11.2 ” (H) x 8.83 ” (W) Kit Only

Other Options Include

  • Anti-Reflective Protective Faceplate option
  • Strengthened Glass Protection Option
  • Wireless Remote Control Option
  • Touch Screen Option
